Product Overview

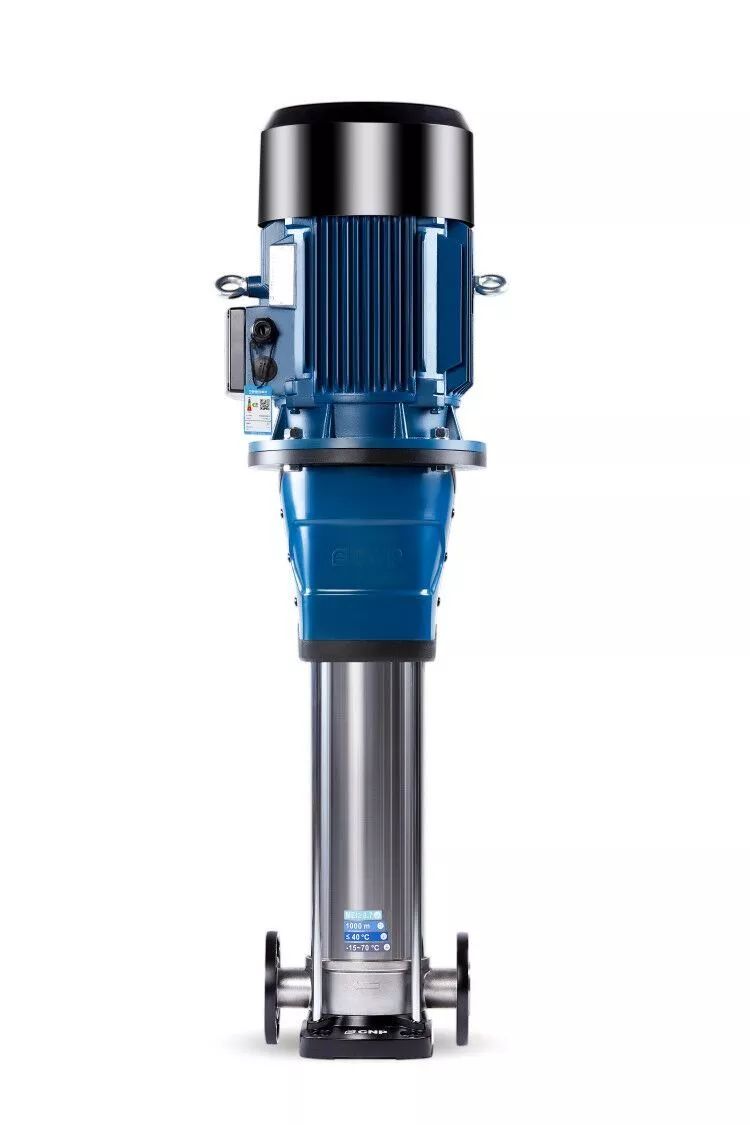

CDL/CDLF Series are vertical stainless steel multistage centrifugal pump. It can be directly installed in a
horizontal piping system whose the discharge and suction are in the same line and this realizes the compact design for pump
structure and pipeline.
The close coupled vertical multistage pump with stainless steel parts is driven by a standard TEFC motor.
Performance range
Flow : up to 240m3/h
Head : up to 305m
Speed : 2900rpm or 3500rpm
Power : up to 110kw
Temperature : up to 105℃
Applications
Cooling water system
Municipal water supply and boosting
Domestic water supply
Irrigation
General industrial services
Washing plants
Boiler feed and condensate system
Water treatment
Standard material
All the parts contact with liquid made of 304 stainless steel, 316 stainless steel on request. The pump head and suction & discharge can be made of cast iron on request too.
Operating Conditions
Liquid : clean, nonflammable and non-explosive liquid without solid particles or fibers.
Liquid Temperature:
Normal Temperature Type -15℃ ~ +70℃
Hot Temperature Type -15℃ ~ +105℃
Ambient Temperature: less than +40℃
Altitude: less than 1000m
If the pump works at temperature above 40℃ or altitude above 1000m, the motor input power will decrease and the bigger motor power should be got in this case.
